Standard Set Screw
Material:Stainless steel304 303 , Carbon Steel zinc plated, Alloy Steel Black Oxide, Brass & Aluminum
surface treatment:Plain Zinc Plated & Black Oxide, Locking Patch.
Size:M2-M24
package:small box +carton+pallet
To place an order,Please leave a message or send E-mail
- Description
- Specifications

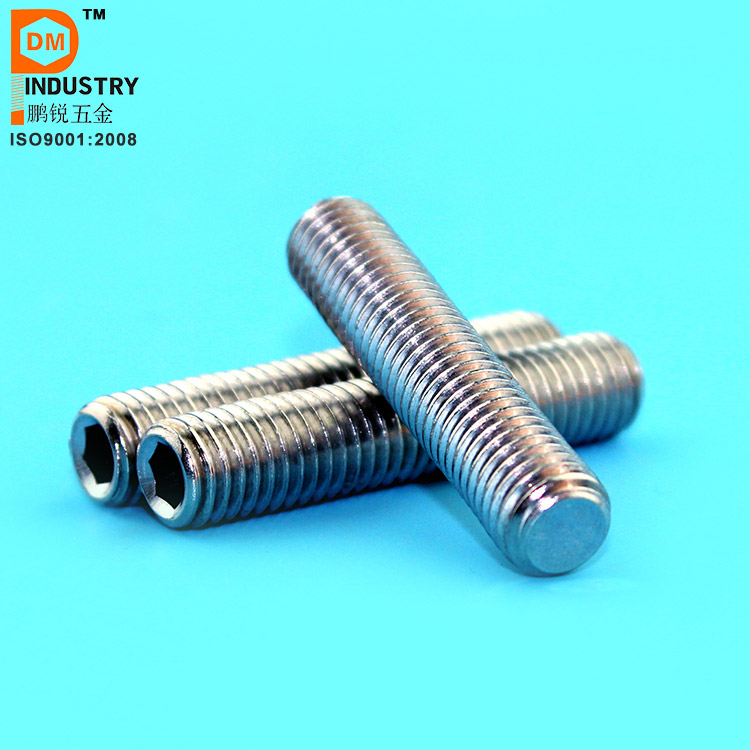

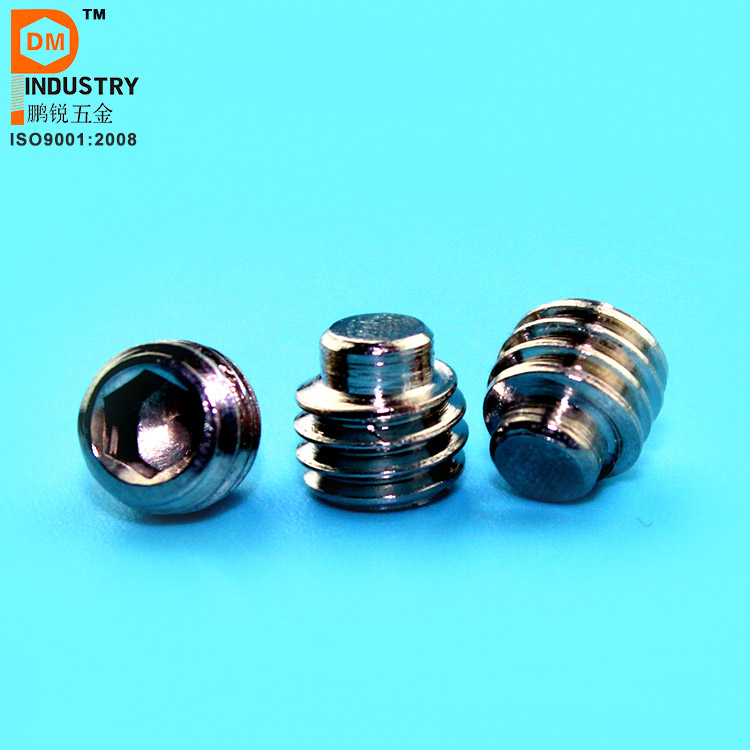

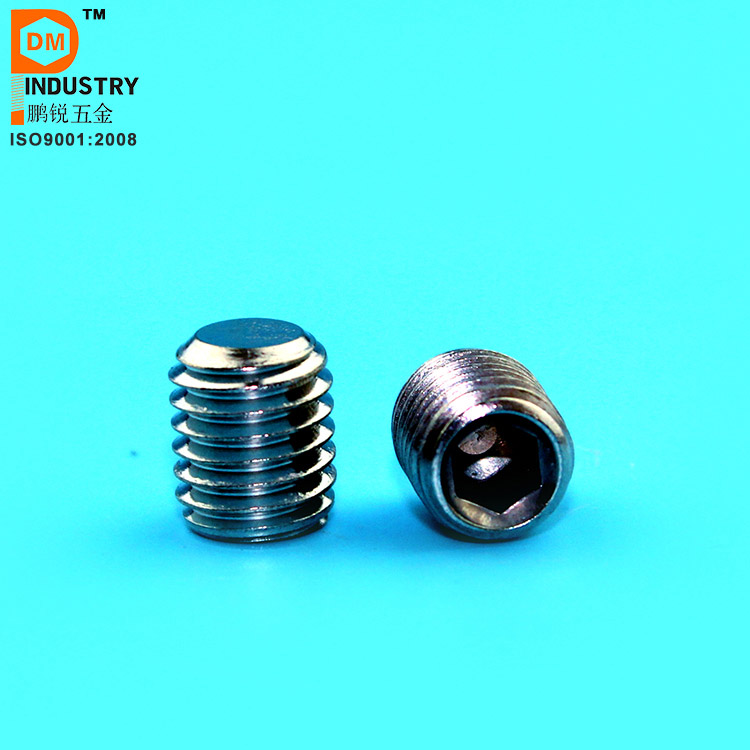

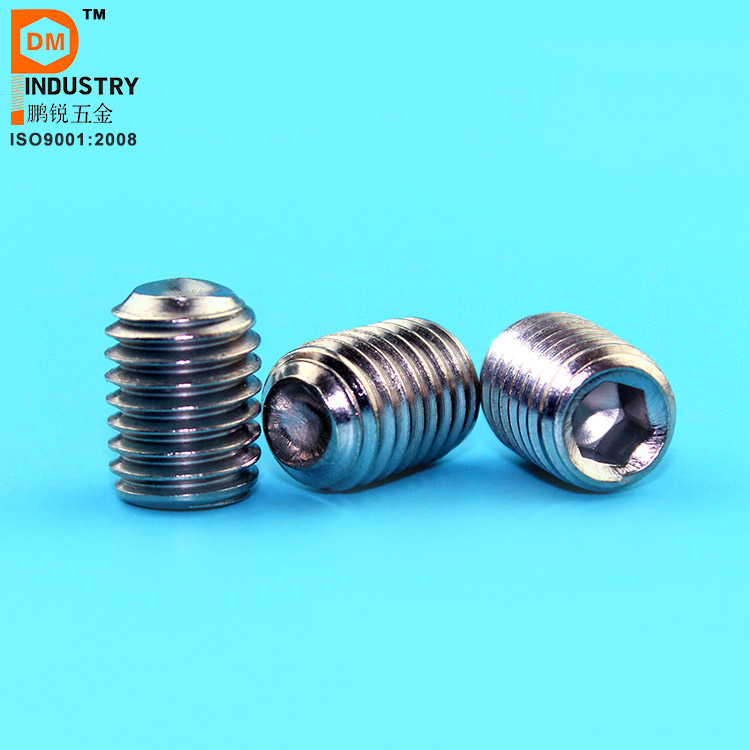

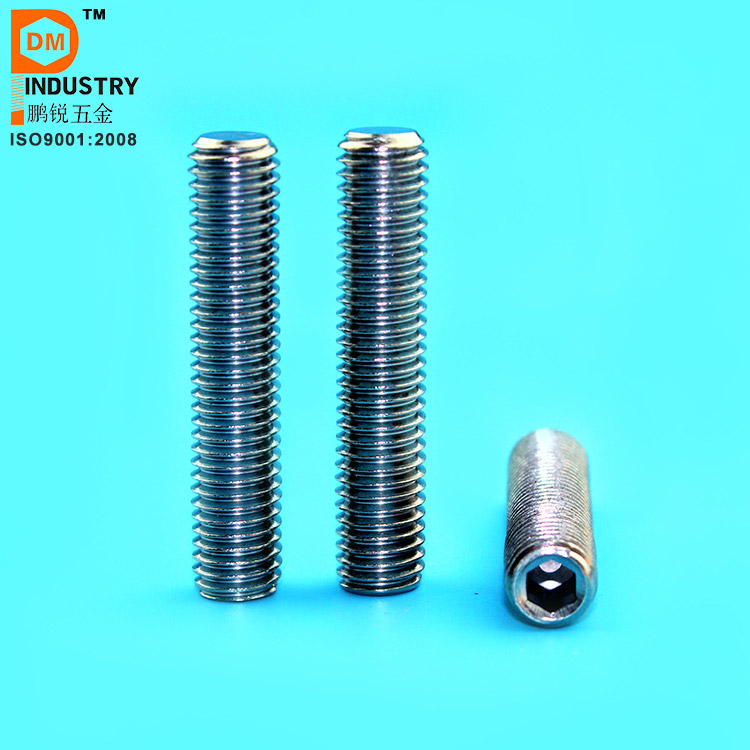

Standard Hex Socket Set Screw
Material:Stainless steel304 303 , Carbon Steel zinc plated, Alloy Steel Black Oxide, Brass & Aluminum
Surface Treatment: Plain Zinc Plated & Black Oxide, Locking Patch.
Standard: DIN ANSI/ASME IFI BS GB JIS
Thread Size:M2-M24 #2-1INCH
Screw Length：2-100mm
Head Type：Hex Socket Head , Slot Drive

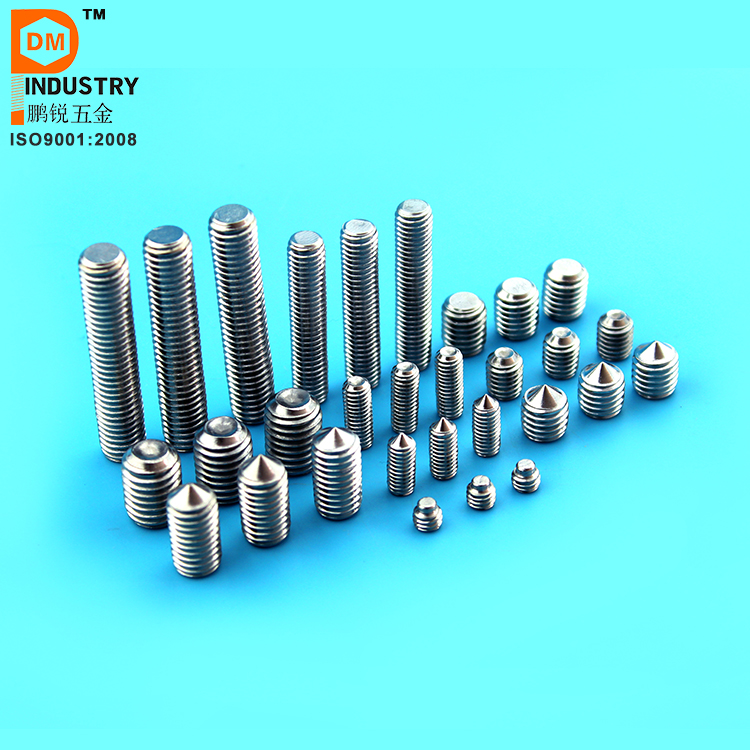

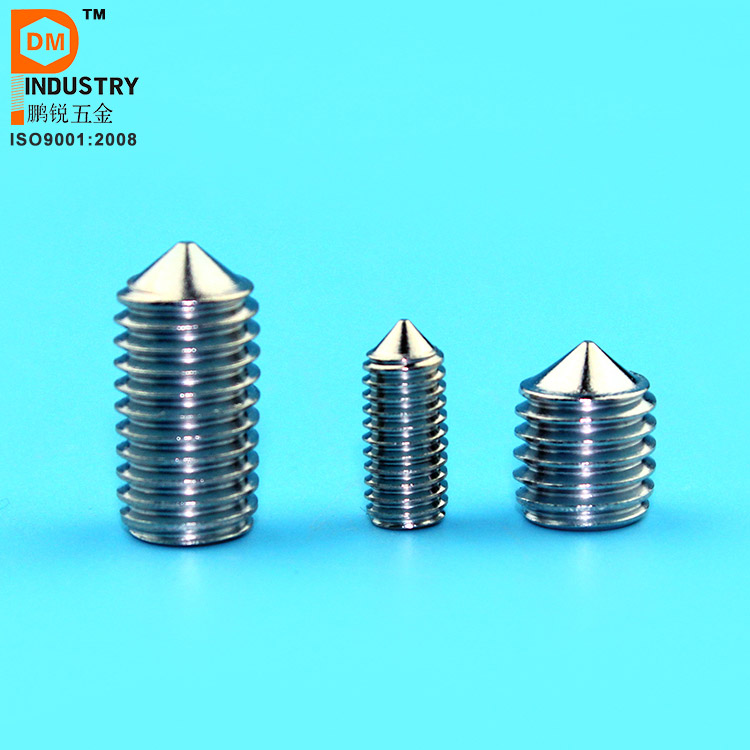

Point Type:Flat Point /Dog point/ cone point/ sharp point/ cup point.
MOQ:1000pcs
Delivery time:10-15days
Payment Terms:T/T Westunion
Package:Plastic bag+box+carton+pallet.
For more information, please contact us by email, thanks!
单位：inch 公称直径d n t max min max min #0 0.014 0.010 0.020 0.016 #1 0.016 0.012 0.020 0.016 #2 0.018 0.014 0.025 0.019 #3 0.020 0.016 0.028 0.022 #4 0.024 0.018 0.031 0.025 #5 0.026 0.020 0.036 0.026 #6 0.028 0.022 0.040 0.030 #8 0.032 0.026 0.046 0.036 #10 0.035 0.029 0.053 0.043 #12 0.042 0.035 0.061 0.051 1/4 0.049 0.041 0.068 0.058 5/16 0.055 0.047 0.083 0.073 3/8 0.068 0.060 0.099 0.089 7/16 0.076 0.068 0.114 0.104 1/2 0.086 0.076 0.130 0.120 9/16 0.096 0.086 0.146 0.136 5/8 0.107 0.097 0.161 0.151 3/4 0.134 0.124 0.193 0.183
